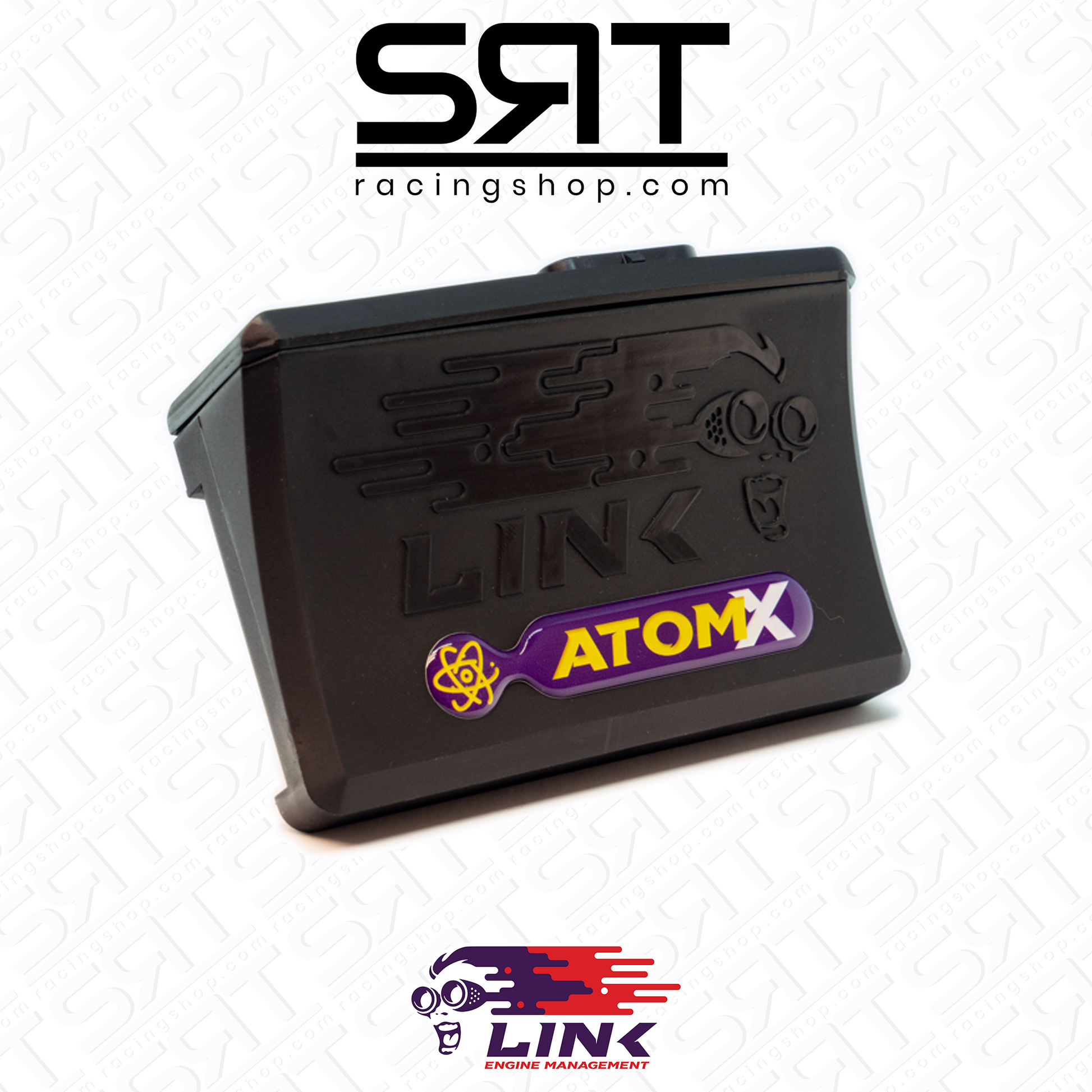

Link ECU G4X AtomX

Small, but mighty!

The ECU Link G4X AtomX is the latest version of our entry level ECU. However, don't let its size fool you, the AtomX has extended data logging and uses the same microcontroller as the entire G4X range! It is more responsive and has a higher bandwidth than its predecessor the G4+ Atom II.

G4X offers 512 megabytes of 32-bit recording using up to 250 channels, each limited to 1kHz per channel (by the operating system), with a maximum of 100 kSamples/sec.

G4X offers 8x faster communication speed, allowing you to download logs 8x faster and quickly sends all recordings to a new and improved PCLink, available for download below in the features tab.

The AtomX can control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or it can be used for up to eight cylinders using batch firing. Now with Knock Control.

This makes it ideal for naturally aspirated engines that just need a tune-up and don't need all the extra sensors and features that come with our higher level ECUs.

Requires Loom "A".

SPECS OVERVIEW:

Entrances

• 2 digital inputs
• 2 temperature inputs
• 3 analog inputs
• 2 trigger inputs
• 1 knock entry

Exits

• 4 units for injectors
• 4 ignition drivers
• 4 auxiliary outputs^
• +5V Sensor Power
• ^Unused ignition switches can be used as additional Aux
  exits

Communications

• 1x CAN bus
• 1x USB tuning connection
• 1 x thirty four pin, waterproof connector
• Upgraded Communications Chip

Measurements and weights:

• Dimensions: 90mm (L) x 130mm (W) x 45mm (H)
• Weight: 180 grams
