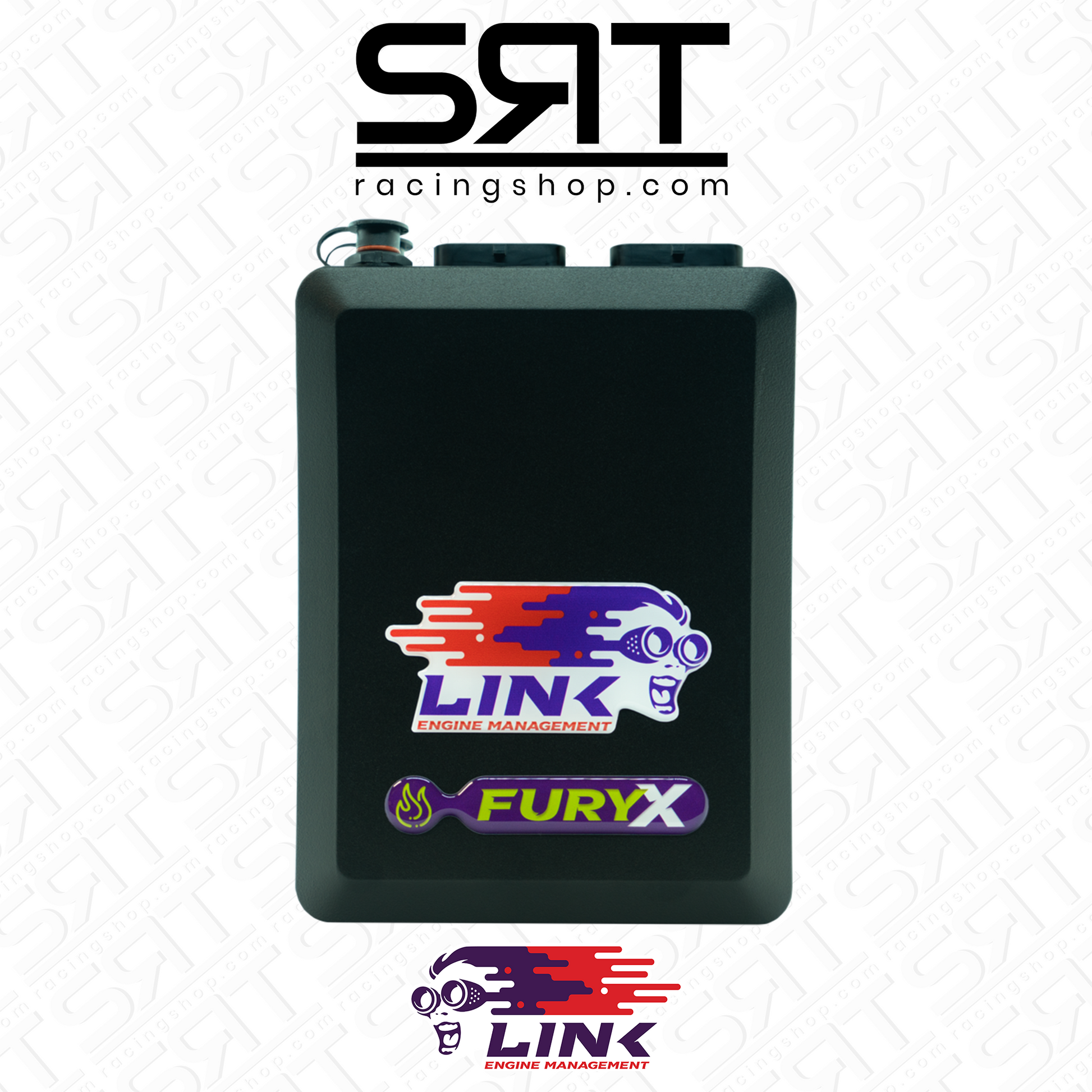

Link ECU G4X FuryX

A premium ECU with integrated digital broadband.

• The FuryX is a premium ECU like the XtremeX, but with the addition of integrated wideband digital Lambda control.
• Now on the G4X platform, the FuryX features a faster processor, faster communications, and a whopping 512 megabytes of data logging!
• With 8 injector actuations and 6 ignition actuations, the FuryX can control up to 3 rotors or 6 cylinders with sequential injection and direct spark, making it an excellent choice for professional level motorsports or more demanding street applications.
• The added benefit of an integrated wideband digital Lambda controller means increased unit accuracy, as well as simple setup.
• The FuryX comes with decals, a quick start guide, a mounting bracket, and a USB tuner cable. Requires Loom "A" and "B" or Pin "A" and "B" kits, not included.
• If you're looking for more inputs, outputs, or features, consider the G5 Voodoo Pro

SPECS OVERVIEW:

Entrances

• 8/10* digital inputs
• 4 temperature inputs
• 9 analog inputs
• 2 trigger inputs
• 2 Knock inputs
• 1 x LSU 4.9 wideband lambda sensor input

Exits

• 8 injection units
• 6 ignition drivers
• 10 auxiliary outputs^
• +5V Sensor Power
• +8V Sensor Power
• ^Unused fuel and ignition switches can be used as additional Aux outputs

Communications

• 2 * CAN buses
• 1x serial connection (RS232).
• 1x USB Tuner Connection

Measurements and weights

• Dimensions: 185mm (L) x 130mm (W) x 40mm (H) (without frames)
• Mass: 680 grams

*DI pins 9 and 10 used by the second CAN bus

What's in the box?

• Supplied with USB tuner cable and mounting bracket.
• Requires Loom “A” and “B” or Pin kit “A” and “B” (not supplied).
