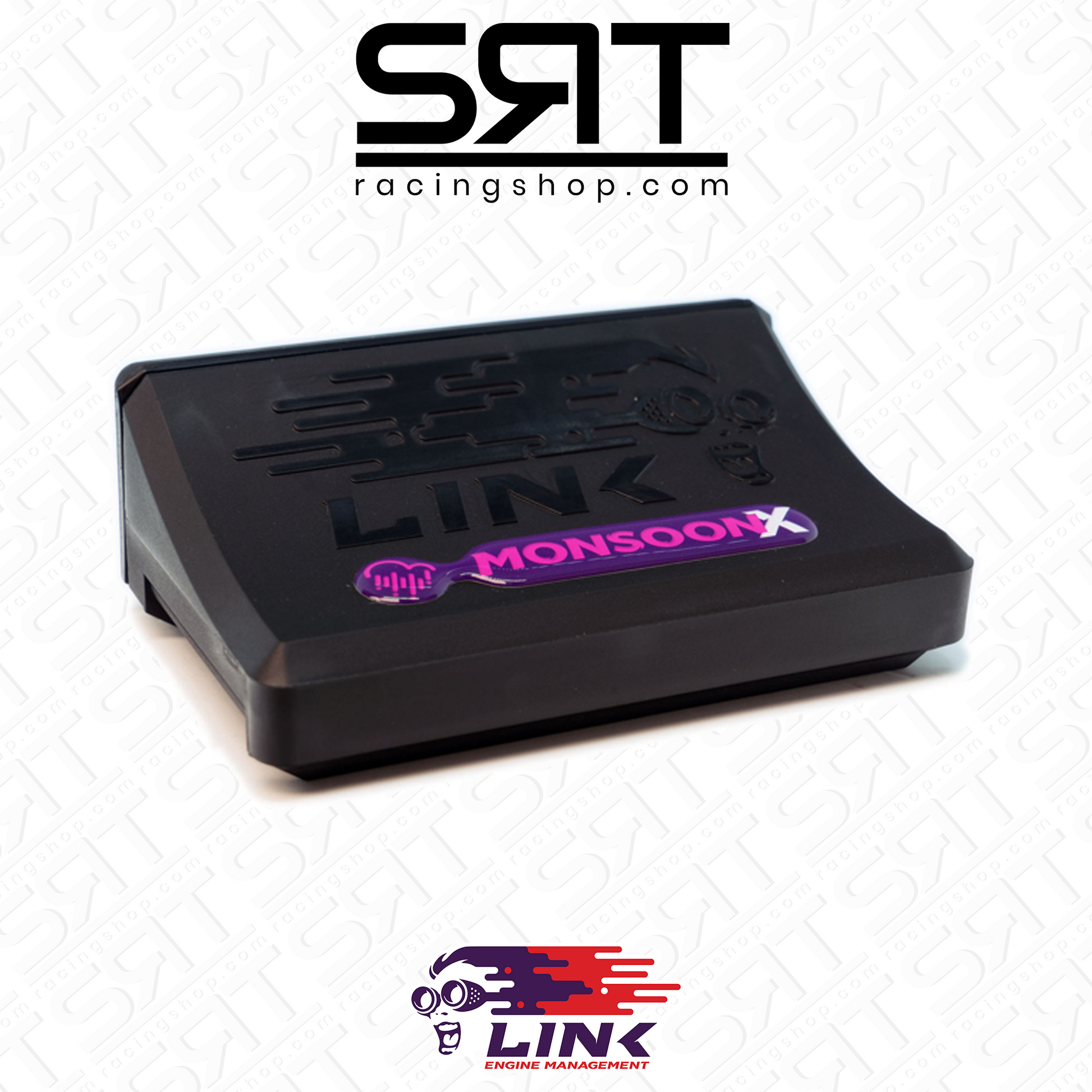

Link ECU G4X MonsoonX

More features, more powerful.

The MonsoonX has been updated to provide 512 megabytes of data logging, meaning you can record much more data at a faster sample rate. Control loops are also more precise than its predecessor the G4+, along with improvements like single-precision floating-point fuel tables, improved ignition timing resolution, and faster communications. These updates make the G4X Monsoon a true powerhouse in a small package.

G4X offers 512 megabytes of 32-bit recording using up to 250 channels, each limited to 1kHz per channel (by the operating system), with a maximum of 100 kSamples/sec.

With the MonsoonX you get all the tuning features of the AtomX, but you can also choose to run some of the following features: Launch Control, Anti-lag, VVT Control, and Closed Loop Boost Control. It also comes with a built-in 4 or 7 bar MAP sensor, further reducing installation costs. Now with Knock Control.

Note: MonsoonX will run any of the above features, but it cannot run all of them at once. The number of features that can be run depends on the limited number of inputs and outputs that each feature requires.

The MonsoonX will control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or it can be used for up to eight cylinders using batch firing.

This makes it ideal for naturally aspirated or turbocharged engines that just need a tune-up and one or two extra features, so there is no need to upgrade to one of our higher level ECUs.

Requires Loom A

SPECS OVERVIEW:

Entrances

• 4 digital inputs
• 2 temperature inputs
• 4 analog inputs
• 2 trigger inputs
• 1 x Knock input (shared with DI4)
• 1 x Integrated 4 bar MAP sensor

Exits

• 4 units for injectors
• 4 ignition drivers
• 6 auxiliary outputs^
• +5V Sensor Power
• ^Unused ignition switches can be used as additional Aux outputs

Communications

• 1x CAN bus
• 1x USB Tuner Connection
• Updated communication chip (four times faster than G4+)

Measurements and weights:

• Dimensions: 95mm (L) x 130mm (W) x 45mm (H)
• Weight: 220 grams

Advanced features not present on AtomX:

• Antilag, rolling antilag and launch control.
• Up to 2 fully variable closed loop VVT cams.
