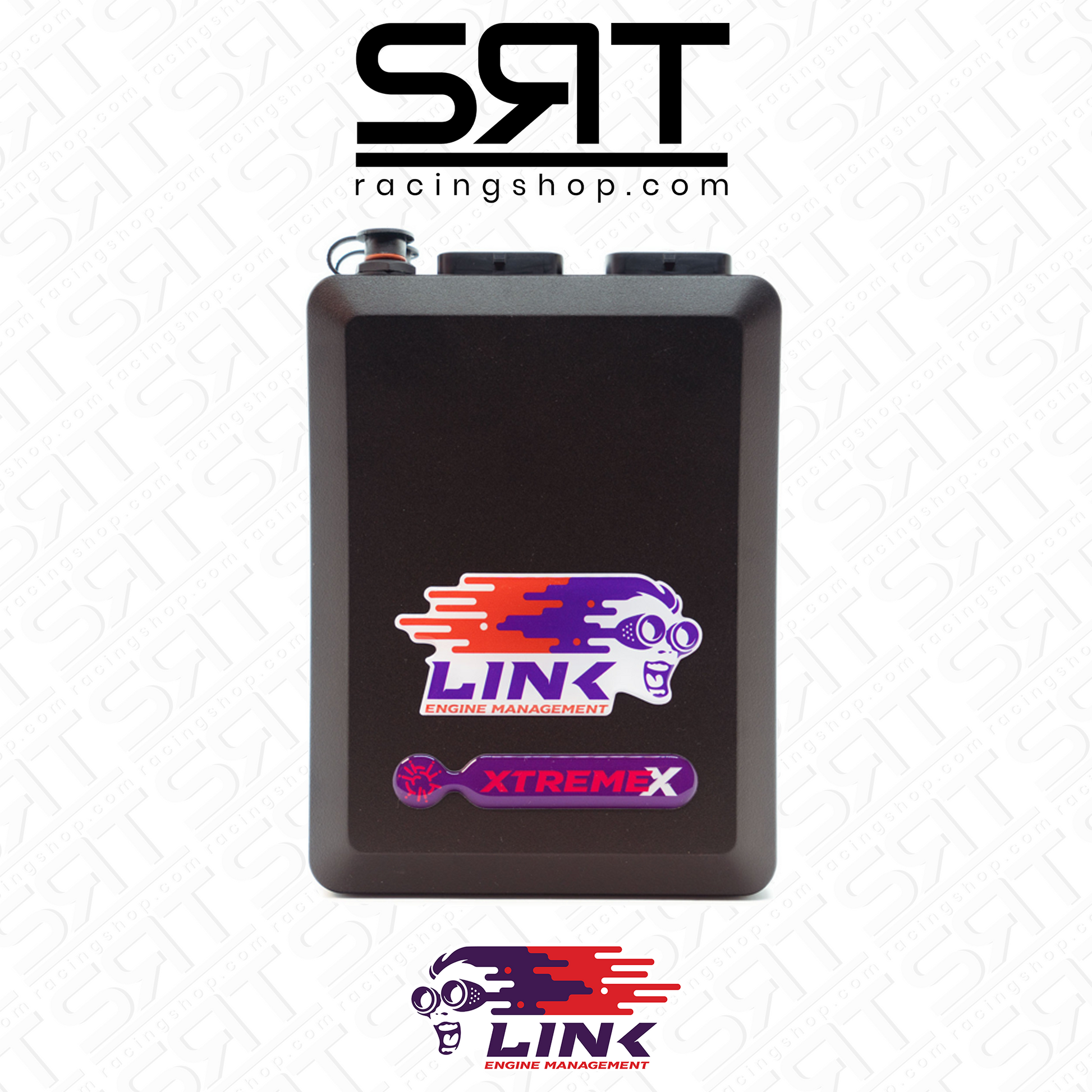

Link ECU G4X XtremeX

XtremeX is one of Link's premium ECUs with more inputs, outputs and features.

• XtremeX features integrated electronic throttle and all the advanced features including anti-lag, cruise control and traction control.
• With 8 injector actuations and 8 ignition actuations, the XtremeX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark. The XtremeX is a great choice for professional level motorsports or the most demanding street applications.
• Note: For peak & hold please contact a Link ECU sales representative to purchase a G4+ Xtreme ECU.
• Requires Pin Kit "A" and "B" for installation.

If you're looking for integrated wideband digital lambda control, consider the Fury.

SPECS OVERVIEW:

Entrances

• 8/10* digital inputs
• 4 temperature inputs
• 11 analog inputs
• 2 trigger inputs
• 2 Knock inputs
• *2 inputs required when using 2nd CAN bus

Exits

• 8 injection units
• 8 ignition drivers
• 10 auxiliary outputs^
• +5V Sensor Power
• +8V Sensor Power

^Unused fuel and ignition switches can be used as additional Aux outputs

Communications

• 2 * CAN buses
• 1x serial connection (RS232).
• 1x USB Tuner Connection
• Faster communications than G4+ models
• 512 megabyte data logging

Measurements and weights

• Dimensions: 185mm (L) x 130mm (W) x 40mm (H) (without frames)
• Mass: 680 grams

*DI pins 9 and 10 used by the second CAN bus

Advanced features not found on Storm:

• Fully programmable electronic throttle control complete with shift acceleration and anti-lag functionality.
• Automatic speed regulation.
• Two independent CAN modules.
• 30 general purpose tables (up from 20)
• All Motorsport features including full gear shift control, cruise control, traction control, anti-lag and launch control.
• Advanced closed-loop lambda strategy and dual bank lambda control.

What's in the box?

• Supplied with USB tuner cable and mounting bracket.
