Link ECU MXG Strada 7" Dash - Race Edition

Link MXG Strada 7” Dashboard, Powered by AIM.

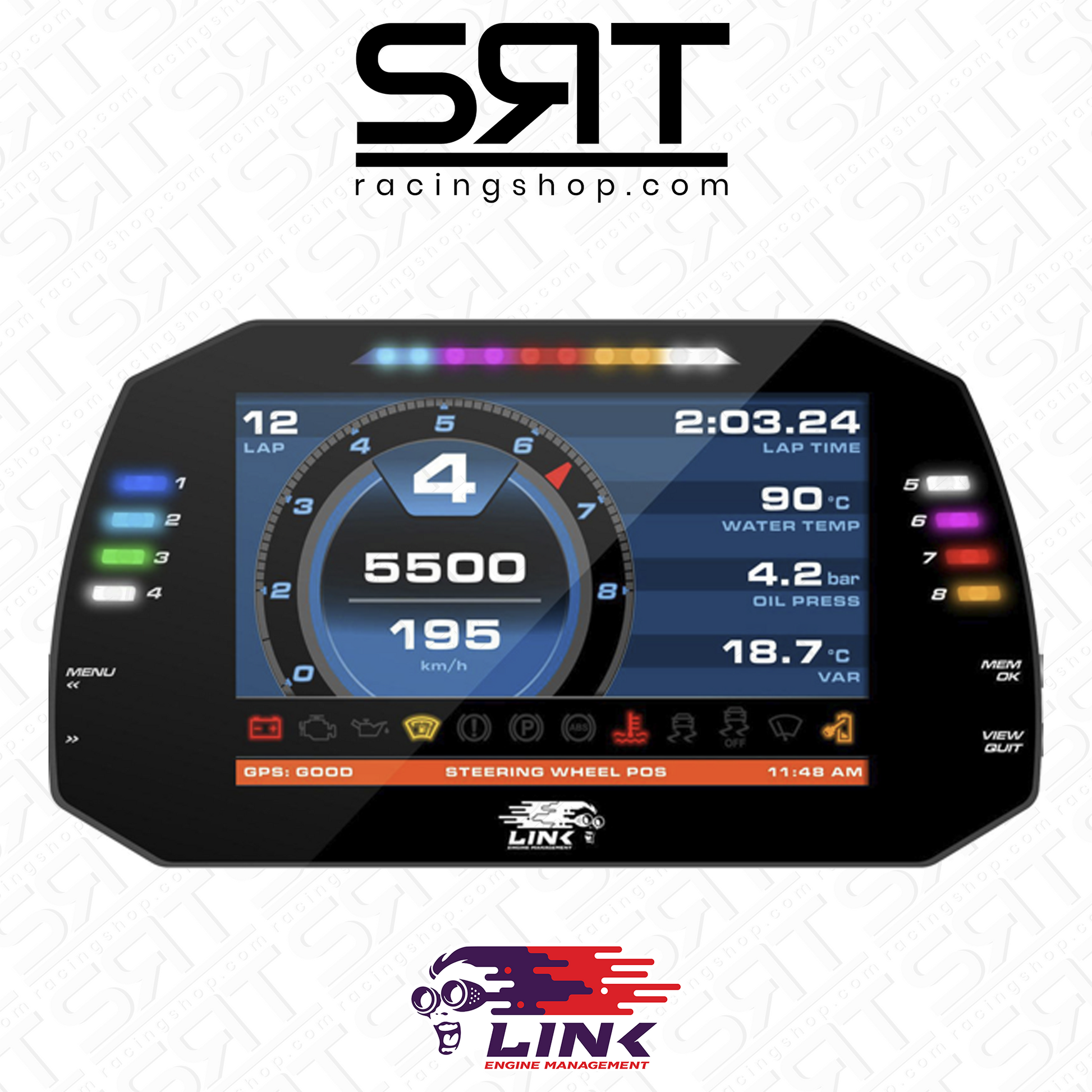

The Link MXG Strada Race Edition is a 7-inch full-color display with 10 RGB shift lights and eight customizable LED warning lights. The dash is pre-configured to work with all Link G4+/G4X Wire-In and Plugin ECUs. See the features tab for more information.

This listing is for the "Race Edition", please see "Street Edition" if you are looking for a dash for road use.

The Strada dashboard is also available in 5” (MXS) and 10” (MXT) versions.

The Link MXG Strada Race Edition dashboard features customizable shift lights, eight flexible warning LEDs and a high-contrast 7" TFT display. Visual quality is always optimal as the ambient light sensor automatically adjusts the display brightness.

The 10 multi-color RGB shift lights on the MXG Strada can be customized to your liking to define the RPM threshold for each individual gear.

The same flexibility applies to the eight configurable RGB alarm LEDs. You can configure them to turn on/off based on analog or digital inputs, ECU values, expansion values, math channels or optionally GPS information (GPS module available). You choose the conditions and colors and you can select a steady or flashing alarm and the flashing frequency. You can also configure an accompanying text message along with alarm priorities.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all the real-time information read from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The MXG Link connects directly to your Link ECU via the pin kit and wiring harness supplied in the box.

The dashboard can be customized via ECU PC Link and Aim Technologies Race Studio 3 software.

The MXS Link connects directly to your Link ECU via the pin kit and wiring harness supplied in the box.

For use with plug-in ECUs: CANPCB and CANF connectors will be required (purchased separately).

Included in the package:

MXG 1.2 Road Connection

USB cable

Standard 14 pin wiring

23 pin connector + contacts

GPS module available separately.

Power consumption: 400 mA

Dashboard dimensions: 237×127.6×26 mm

Weight: 950 g

Waterproof: IP65
