Link ECU MXS Strada 5" Dash - Street Edition

Link MXS Strada 5" Dash, Powered by AIM.

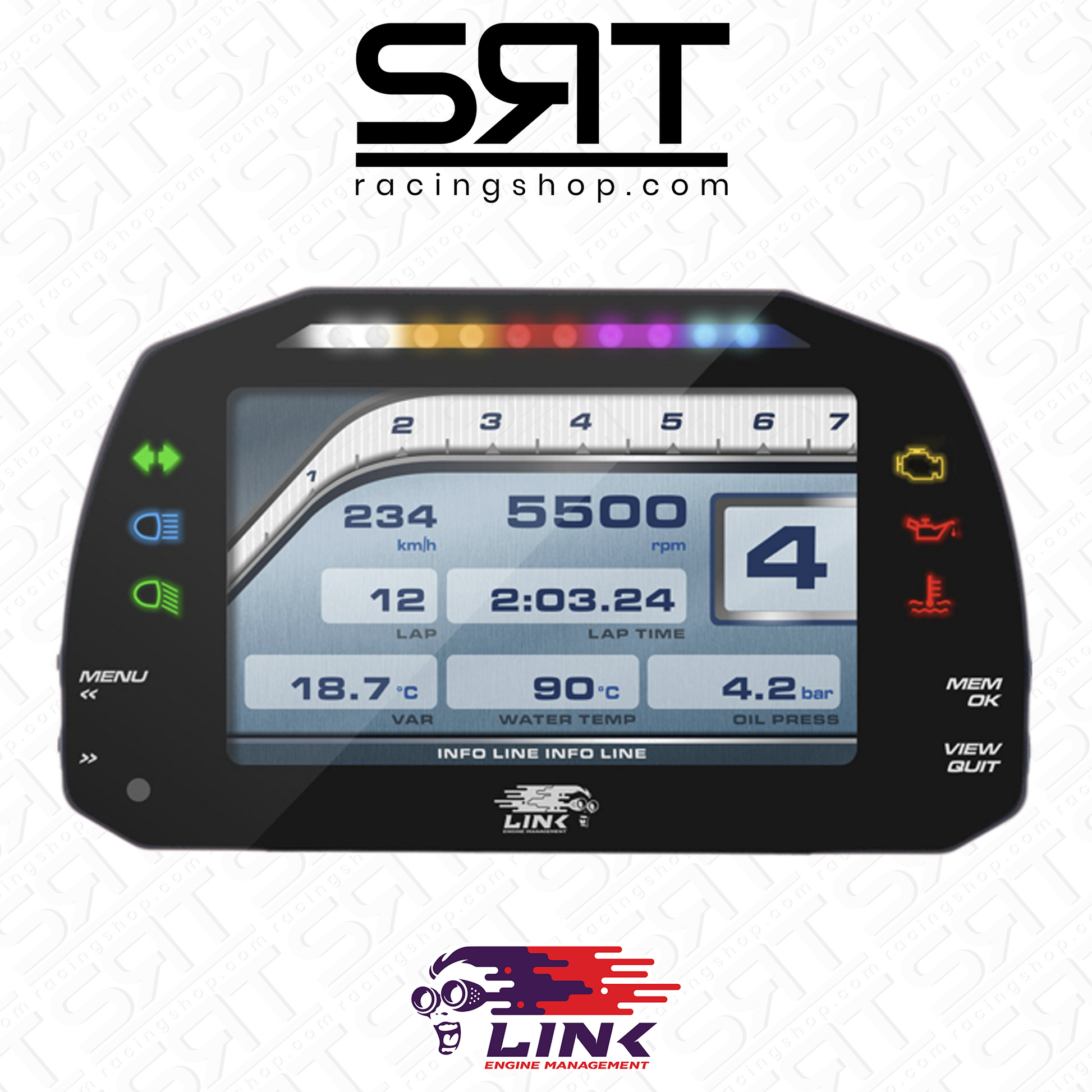

The Link MXS Strada Street Edition is a road legal 5 inch full color display with 10 RGB shift lights and street icons along the side of the dash. It comes pre-configured to work with all Link G4+/G4X Wire-In and Plug-in ECUs.

This listing is for the "Street Edition", please see the "Race Edition" if you are looking for a dash for motorsport purposes.

The Strada dashboard is also available in 7” (MXG) and 10” (MXT) versions.

The Link MXS Strada Street Edition dashboard features customizable lights, six road icons and a high-contrast 5-inch TFT display. Visual quality is always optimal as the ambient light sensor automatically adjusts the display brightness.

The 10 multicolor RGB shift lights on the MXS Strada can be customized to your liking to define the RPM threshold for each individual gear. There are also 6 road icons located on the sides of the screen. These include a warning light, a headlight, a high beam, an engine warning light, an oil pressure warning light, and a temperature warning light.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all the real-time information read from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The MXS Link connects directly to your Link ECU via the pin kit and wiring harness supplied in the box. For use with plug-in ECUs: CANPCB and CANF connectors will be required (purchased separately).

The dashboard can be customized via ECU PC Link and Aim Technologies Race Studio 3 software.

Included in the package:
MXS 1.2 Road Connection
USB cable
Standard 14 pin wiring
23 pin connector + contacts

GPS module available separately.

Dimensions: 169.4x97x23 mm
Weight: 480 g
Power consumption: 400 mA
Waterproof: IP65
