Link ECU MXT Strada 10" Dash - Street Edition

Link MXT Strada 10” Dashboard, Powered by AIM.

The Link MXT Strada Street Edition is a 10-inch road legal full color display with 10 RGB shift lights and street icons above the dash. It comes pre-configured to work with all Link G4+/G4X/G5 Wire-In and Plug-in ECUs. See the features tab for more information.

This listing is for the "Street Edition", please see the "Race Edition" if you are looking for a dash for motorsport purposes.

The Strada dashboard is also available in 5” (MXS) and 7” (MXG) versions.

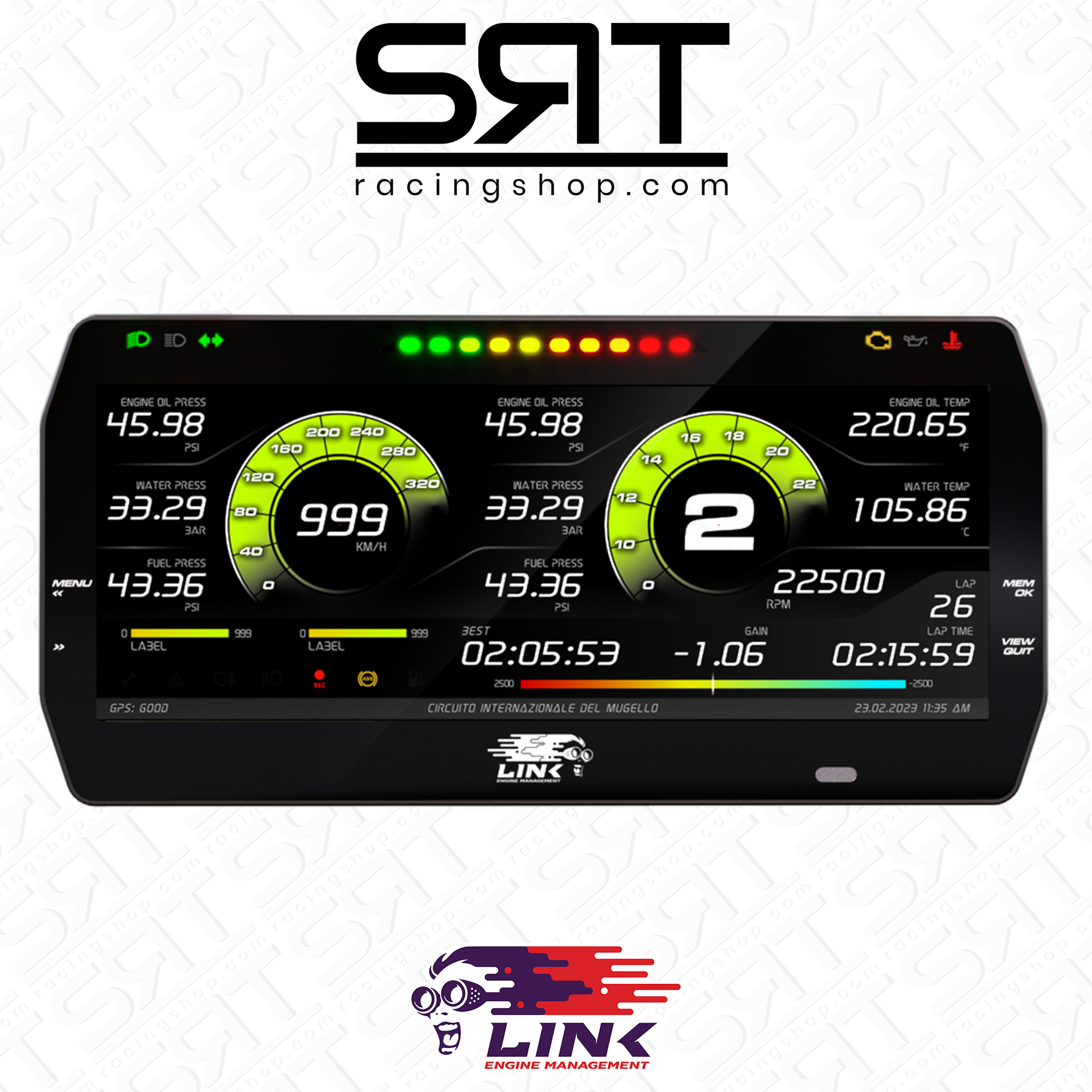

The Link MXT Strada Street Edition dashboard features customizable shift lights, six road icons and a high-contrast 10" TFT display. Visual quality is always optimal as the ambient light sensor automatically adjusts the display brightness.

The 10 multicolor RGB shift lights on the MXT Strada can be customized to your liking to define the RPM threshold for each individual gear. There are also 6 road icons located above the screen. These include the turn signal lights, headlight, check engine, warning light, and fuel light.

The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all the live information readings from the ECU such as RPM, speed, water temperature, oil pressure and much more.

The MXT Link connects directly to your Link ECU via CAN using the pin kit and wiring supplied in the box.

The dash can be customized and configured using Link's PCLink software and Aim Technologies Race Studio 3 (both free downloads).

Included in the package:
Link MXT Strada 10” Dashboard
USB cable
Standard 14 pin wiring
23 pin connector + contacts

GPS module available separately.

Power consumption: 400 mA

Dashboard dimensions: 278 X 135 X 43.2 mm

Weight: 1200 grams

Waterproof: IP65
