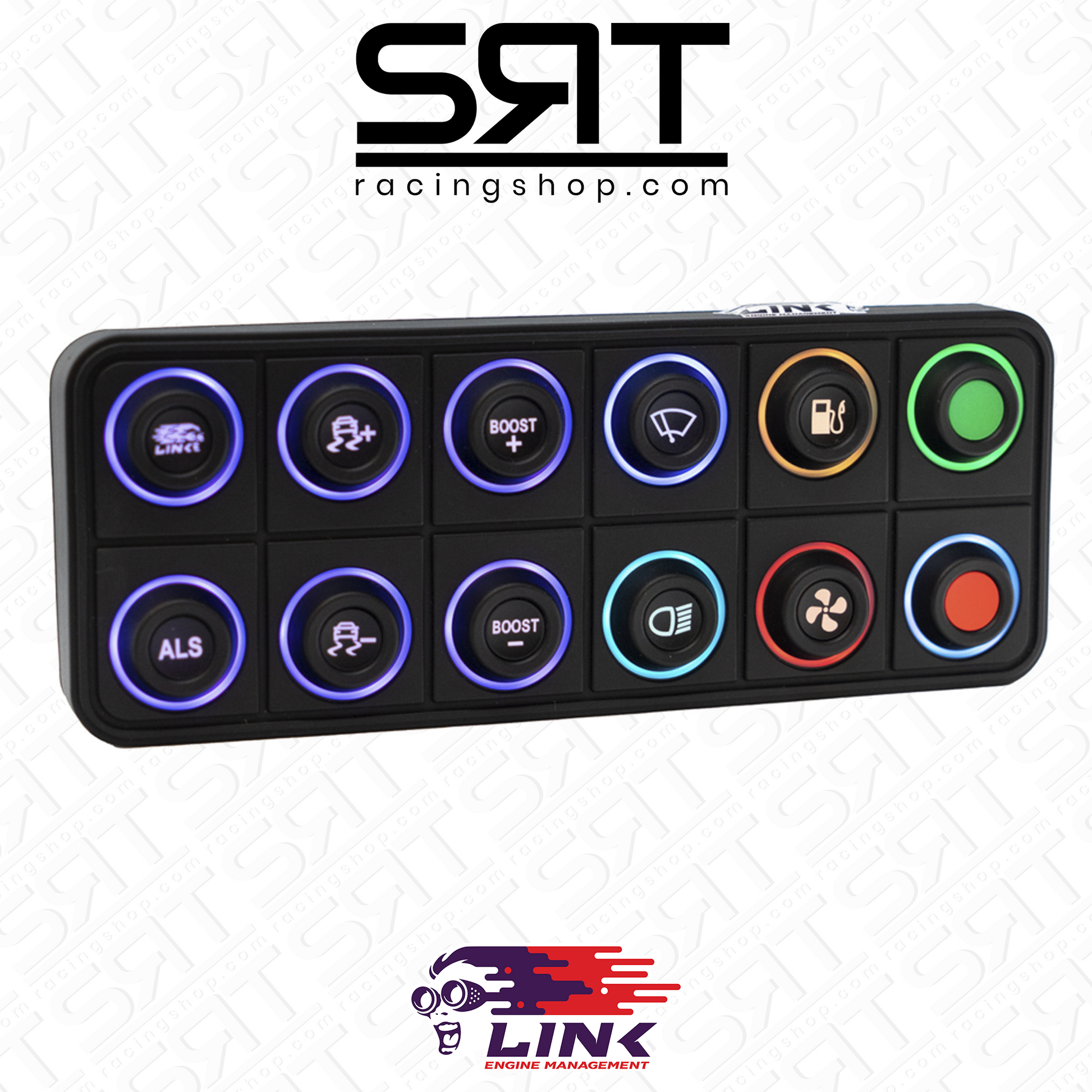

Link 12 Button Keypad

Rugged 12-key CAN keyboard with interchangeable 15mm inserts (sold separately).

Custom button inserts and configurable per-button RGB indicator rings allow for extremely flexible configurations.
The keyboard is designed for maximum reliability: IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, 400 hours UV, salt spray resistant and switches rated for 3 million operations.
Can be installed both indoors and outdoors, perfect for road, track and off-road use.

Note: The keyboard comes with blank button inserts, inserts must be selected and purchased individually. 1 ECU Link logo button insert included loose in the package.

Characteristics:
•CAN configurable with PC link G4X: Change LED backlight, individual button indicator ring color, programmable to show state change, flashing option, multiple modes including momentary, latched and toggle.
•Customizable button inserts – The individual insert replacement system makes changing your keyboard layout simple and economical.
•IP67/IP69K Waterproof Rating – Guaranteed dustproof
and sealed against immersion in water up to a depth of 1 meter up to
up to 1 hour. The IP69K rating provides protection against high
high temperature pressurized water spray.
•Compatible with all G4X control units. Integrated support from G4X PC Link version 6.22 onwards

Package Contents:
1 x 12-button CAN keyboard
1 DTM4 Mating Connector Kit
1 connection sticker
1 Keyboard Button Insert – Logo Link
